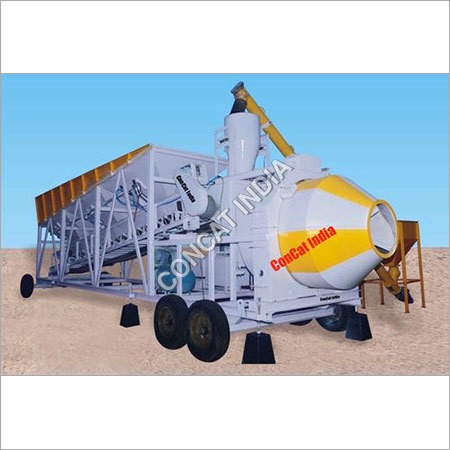

Mobile Concrete Batching Mixing Plant

Mobile Concrete Batching Mixing Plant
Mobile Concrete Batching Mixing Plant
Product Code : CI 01
Brand Name : CONCAT INDIA
Product Description

ConCat MRD Series has been design for single chassis structure. It is compact & fully automatic concrete batching & mixing plant. This plant having four separate weighing system simultaneously. This model has been preferred due to easy installation & easily shifting of the plant from one site to another site.

This plant is available in two model PM 20 (Output 20 cum/hrs.) PM 30 (Output 30 cum/hrs.)

FEATURES:

  • PLC operated completely automatic control panel.
  • Blade mixing technology with planetary gear-boxes.
  • Electronic weighing system for better accuracy in design – mix.
  • Separate weighing system for cement and fly-ash.
  • Italian screw feeder, to pour cement speedily
  • Password locking facility
  • Water and ad-mix pour by weight.
  • Pneumatically operated gate for aggregate and sand.
  • Italian vibrators.
  • Tabulated print out system for each batch.
  • No pit required only nominal civil work.
  • Heat proof control cabin.
  • Cement silo with vertical screw feeder (optional)
  • Hydraulic discharge system

Specification:

MODEL

RDM - 20

RDM - 30

Mixer Unit

Drum Mixer

Mixer Unit

Geometrical Volume

1.5 M3

1.75 M3

RMC Output/Batch

0.5 M3

0.75 M3

Percentage of Filling

35%

35%

Batches/Hour

40

40

Discharge Height From GL

Discharge In Pump

Discharge In Pump

Capacity (8 Hours)

160 M3

240 M3

Cement Batching

By Weight

By Weight

Aggregate Batching

By Weight

By Weight

  Water Batching

By Weight

By Weight

Ad-Mix Batching

By Weight

By Weight

Number of Compartment

03 Nos.

03 Nos. - 3/4

Power Consumption

Mixer Motor

10 HP

15 HP

Belt Conveyor Motor

10 HP

15 HP

Cement Screw Feeder

10 HP

10 HP

Water Pump

3 HP

3 HP

Compressor Motor

3 HP

3 HP

Vibrator Motor

0.5 HP

0.5 HP

Chemical Motor

1 HP

1 HP

Net Consumption

35 HP

42.5 HP

Power Supply

415 X 50 Hz

415 X 50 Hz

Recommended D.G Set

45 KVA

62 KVA

Note: Accuracy of IS 4925 the accuracy of Design Mix # (+-) 1 % Water & Cement (+-) 2% for the aggregates.





Trade Information
  • Main Domestic Market
  • All India
